Enterprise RAG architecture is the layered system that connects a large language model to your organization's own knowledge so it can answer from your documents instead of guessing from its training data. Retrieval-augmented generation, the pattern behind it, was defined by Lewis and colleagues in 2020, who paired a retriever with a generator and set the state of the art on open-domain question answering. A notebook that answers questions over a handful of PDFs shares almost nothing with a system that serves thousands of employees against governed data under a latency budget. This guide walks the layers that separate the two, the trade-offs that decide accuracy and cost, and the production concerns that decide whether it survives real traffic.
The pressure to get there is not hypothetical. Gartner projects that more than 80 percent of enterprises will have used generative AI APIs or deployed generative AI applications by 2026, up from less than 5 percent in 2023. Adoption is not the same as production. The RAND Corporation reports that more than 80 percent of AI projects fail, roughly twice the failure rate of IT projects that do not involve AI, and most stall in the gap between a working proof of concept and a system that runs reliably. Architecture is a large part of what closes that gap, and RAG is where most enterprise use cases start.
What Is Enterprise RAG Architecture (and How It Differs From Simple RAG)?
Enterprise RAG architecture differs from simple RAG in everything that surrounds the model. Both follow the same core loop: take a user question, retrieve relevant passages from a knowledge base, and pass them to a large language model as context so its answer is grounded in real content rather than parametric memory. A demo stops there. An enterprise system has to survive scrutiny it never sees in a notebook.
Four demands drive the difference. Multi-source ingestion, because enterprise knowledge lives across wikis, ticketing systems, PDFs, databases, and email, each source needing parsing, permissioning, and refresh. Governance and data security, because retrieval must respect who is allowed to see what, and an answer that leaks a document across an access boundary is a breach, not a bug. Service-level expectations on latency and cost, since a system that answers in eight seconds or bills unpredictably will not be adopted. And evaluation, measuring answer quality continuously rather than trusting a handful of hand-checked examples. Getting them right starts with AI-ready data infrastructure, because retrieval quality is capped by the data underneath it.

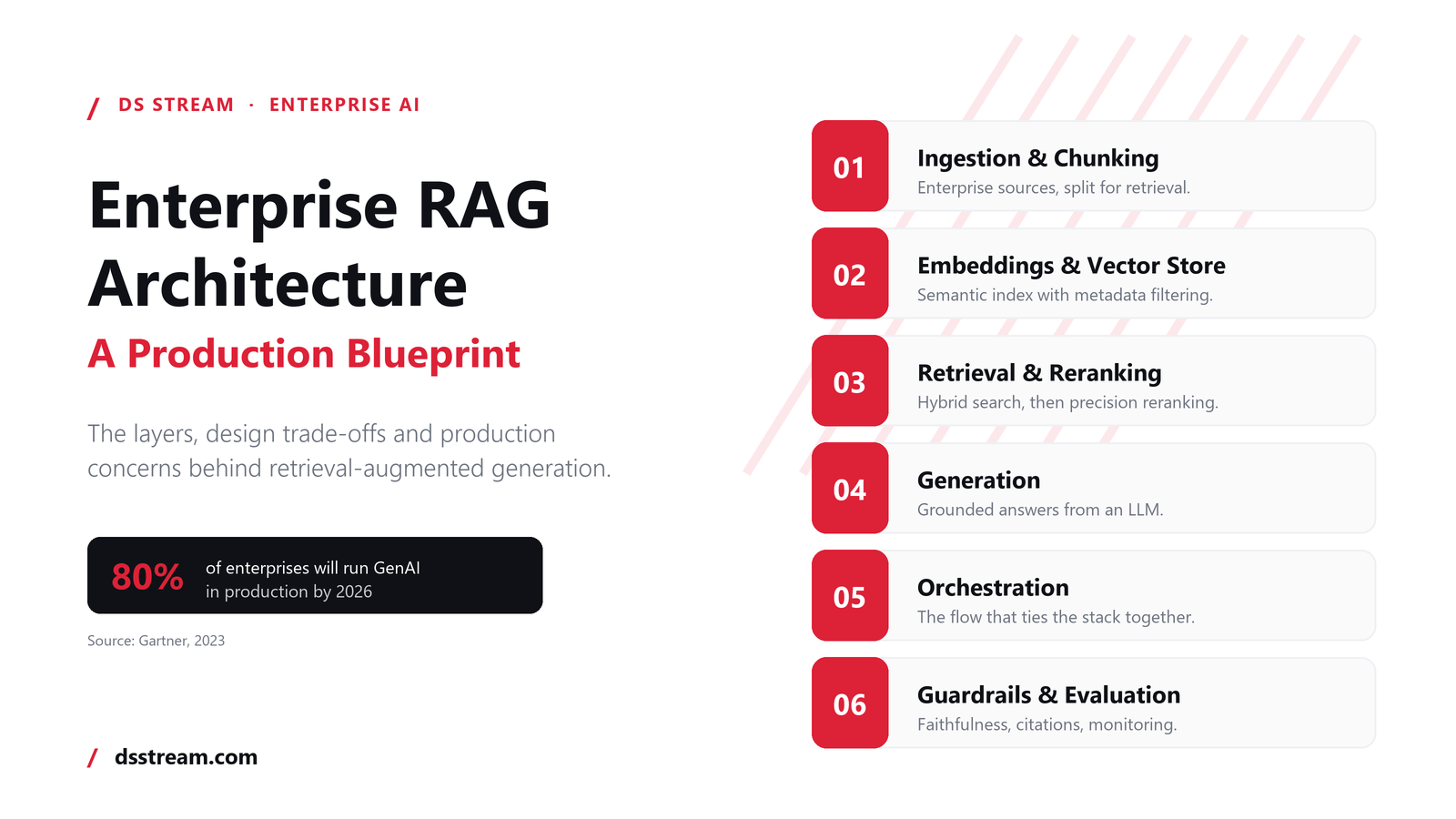

The Core Layers of a Production RAG System
A production RAG system is a pipeline of distinct layers, each with one job, and problems in any one of them show up as bad answers at the end. Naming the layers makes the system debuggable: a wrong answer can be traced to the stage that produced it.
- Ingestion and chunking pull content from source systems and split each document into passages sized for retrieval. Chunking decisions here shape everything downstream.
- Embeddings turn each chunk into a vector that captures its meaning, so semantically related text lands near it in vector space.
- Vector store holds those embeddings and their metadata, and answers nearest-neighbor queries fast enough to sit in a request path.
- Retrieval and reranking fetch candidate chunks for a query, then reorder them so the most relevant few reach the model.
- Generation is the large language model composing an answer from the retrieved context and the user's question.
- Orchestration is the control layer that sequences the steps, manages the context window, handles multi-step queries, and enforces prompts.
- Guardrails and evaluation check inputs and outputs for safety, policy, and grounding, and measure quality over time.
The layers are separable on purpose: a team can swap the embedding model, move the vector store, or add a reranker without rewriting the rest, which is what lets an architecture keep pace as models and tooling change.
How Do You Design the Retrieval Layer for Accuracy?
You design the retrieval layer for accuracy by treating it as the primary bottleneck, because in production most bad RAG answers trace back to bad retrieval rather than a weak model. If the right passage never reaches the context window, no amount of generation quality recovers it. Four choices carry the weight.
Chunking strategy comes first. Chunks that are too large dilute the relevant sentence with noise and waste context budget; chunks that are too small lose the surrounding meaning that makes a passage answer a question, and respecting document structure usually beats splitting on a fixed token count. Hybrid search comes next: dense semantic search finds passages that mean the same thing as the query, while keyword search such as BM25 catches exact terms, product codes, and names that embeddings blur together. Combining both recovers matches either alone would miss.
Reranking is the third lever. A cross-encoder reranker reads the query and each candidate passage together and scores true relevance far more precisely than the first-pass vector search, so retrieving a broad set and reranking down to the best few lifts precision at the top of the list the model actually reads. Metadata filtering is the fourth: constraining retrieval by source, date, department, or access level narrows the search to passages that are both relevant and permitted, serving accuracy and security at once. Underneath all four sits the recall-versus-precision balance: retrieve too little and you miss the answer, too much and you bury it. Tuning it against measured results, not intuition, is the core of retrieval engineering.
Managed vs Self-Hosted: Key Architecture Decisions
The managed-versus-self-hosted decision shapes cost, control, and compliance more than any single model choice. A managed stack leans on hosted model APIs from providers like OpenAI, Amazon Bedrock, or Google Vertex AI, paired with a managed vector database, trading per-token fees for speed and low operational burden. A self-hosted stack runs open-weight models and an open vector store such as pgvector, Milvus, or Weaviate on your own infrastructure, trading engineering effort for control over data, cost at scale, and independence from any one vendor.
Choosing the vector database is the decision teams most often get wrong by defaulting to the familiar. The criteria that matter are scale, meaning vector count and query throughput; metadata filtering, whether the store filters while searching rather than after; hybrid search support, whether dense and keyword retrieval combine natively; and total cost against operational effort. For an organization already running PostgreSQL, pgvector keeps vectors beside relational data and avoids a new system to operate. A team with hundreds of millions of vectors and heavy query load may need a purpose-built engine like Milvus. There is no universally best answer, only the best fit for a given workload.
For enterprises, one constraint often overrides the rest: data residency and compliance. Regulated data may not be allowed to leave a jurisdiction or a private network, which can rule out some managed APIs and push the architecture toward self-hosting or a provider with the right regional and contractual guarantees. Settle that constraint first, because it narrows every layer beneath it.
Production Concerns: Latency, Cost, Grounding, and Evaluation
Production is where a RAG system meets the concerns a demo never has to answer, and four of them decide whether it stays in service. Each is measurable, and each has a design response.
Latency is the first. Every stage adds time, and reranking and multi-hop retrieval, where the system runs several retrieval rounds for a complex question, add the most. A one-to-three-second budget forces real choices about how many candidates to rerank and how many hops to allow, and caching common queries takes pressure off the path. Cost is the second, driven by inference and token volume: long retrieved contexts inflate the token count on every call, so retrieving fewer, better passages cuts spend and latency at once.
Grounding is the third and the reason RAG exists. It means the answer is supported by the retrieved passages, and enforcing it, by instructing the model to answer only from context and to cite the passages it used, is the strongest lever against hallucination, the confident fabrication that erodes trust. Guardrails add a second line, screening outputs that stray from policy or source. Evaluation is the fourth and ties the rest together. RAG evaluation measures faithfulness, whether the answer stays true to the retrieved context; context precision and recall, whether retrieval surfaced the right passages; and citation coverage, whether claims trace to a source. Running these continuously turns quality from an anecdote into a metric you can defend, and it belongs to the same discipline as MLOps practices for production AI: a RAG system is a production ML system and needs the same monitoring and observability.
RAG vs Fine-Tuning: When to Use Which?
RAG and fine-tuning solve different problems, and framing them as rivals leads teams to the wrong tool. RAG gives a model access to knowledge: current, source-cited, access-controlled information it can retrieve at query time and that you can update by changing a document rather than retraining anything. Reach for it when answers must reflect facts that change, must cite where they came from, or must respect who can see what.
Fine-tuning changes a model's behavior: its tone, its output format, its handling of a specialized style or task the base model does not perform well. Reach for it when the problem is how the model responds rather than what it knows. The two are not exclusive, and mature systems often use both, fine-tuning a model to follow a required format while RAG feeds it current, grounded knowledge to work from. Choosing between them on a specific use case deserves more room than a section allows, and a dedicated decision framework is a topic for a separate guide.
How DS Stream Helps You Build Production-Grade RAG
DS Stream builds enterprise RAG systems that reach production and stay there, following the path this guide describes. It starts with the data, because retrieval is only as good as the knowledge base beneath it, so we get sources ingested, cleaned, and permissioned before a single embedding is generated. From there we design the architecture: the chunking, embeddings, vector store, hybrid retrieval, and reranking that decide accuracy, sized to your latency and cost targets rather than a template.
Then we operationalize it. A RAG system is a living service, so we bring MLOps and LLMOps discipline to monitoring, evaluation, and cost control, and build the guardrails and governance an enterprise needs to trust it with regulated data. Our generative AI development services cover that full span, from data foundation to a grounded, evaluated system in production. If you are moving from a promising prototype toward something your business can depend on, talk to our AI engineers about what a production blueprint looks like for your data.
Frequently Asked Questions
What is the difference between RAG and a vector database?
A vector database is one component of a RAG system, not the system itself. It stores embeddings and answers similarity searches, returning the passages closest in meaning to a query. RAG is the whole pattern around it: retrieving those passages, augmenting the prompt with them, and having a large language model generate a grounded answer from them. You can run a vector database without doing RAG, but not RAG at scale without a retrieval store of some kind.
How do you reduce hallucinations in enterprise RAG?
You reduce hallucinations by keeping answers tied to retrieved evidence. Ground the model on the retrieved context and instruct it to answer only from that context, enforce citations so every claim points to a source passage, and improve retrieval with reranking so the right passages reach the model. Add guardrails to screen outputs, and run continuous evaluation on faithfulness so regressions are caught in monitoring rather than by users.
Which vector database is best for enterprise RAG?
It depends on the workload. Weigh scale and query throughput, metadata filtering, native hybrid search, cost, and whether you want a managed service or a self-hosted one. pgvector suits teams already on PostgreSQL that want vectors beside relational data; Milvus and Weaviate are built for large-scale self-hosted search; Pinecone is a managed option that removes operational overhead. The best choice is the one that fits your data volume, compliance needs, and team.
Is RAG better than fine-tuning for enterprise use cases?
Neither is better; they do different jobs. RAG supplies dynamic, citable knowledge the model retrieves at query time and you update by changing a document. Fine-tuning shapes behavior, format, and tone, and holds it inside the model's weights. For most enterprise use cases that need current, source-backed answers, RAG is the right starting point, and many production systems combine the two, using fine-tuning for how the model responds and RAG for what it knows.
